Maps of the MSEAS forecast 3D LCSs for 19 Feb 0000Z to 23 Feb 0000Z 2022, Issued 19 Feb 2022

The following figures show the 3D Finite-Time Lyapunov Exponents (FTLEs) on the surface in the domain, at different times. These FTLEs are for a time window of 6 or 96 hours for the forecast of 19 February 2022 to 23 February 2022.

The figures below show the 3D FTLEs in the domain, at different times. These FTLE computations are for a time window of 6 or 96 hours for the forecasts on the dates as specified. The flowmaps were calculated using a PDE-based approach with 5th order spatial and 3rd order temporal schemes, and a novel composition based approach.

The 3D FTLE field specifies the amount of stretching of the flowmap in the considered time interval. Specifically, the forward / backward 3D FTLE is a logarithmic scaling of the dominant singular values of the forward / backward flowmap with the time duration of interest. The forward FTLE ridges thus highlight codimension-one manifolds (curves in 2D, surfaces in 3D) that repel particles starting on either side, whereas the backward FTLE ridges highlight codimension-one manifolds that attract particles towards the ridge that originally start far apart.

As a reminder, 12:00Z = 13:00 CET, i.e., CET is 1 hour ahead of Zulu time.

Calypso Domain (900m resolution)

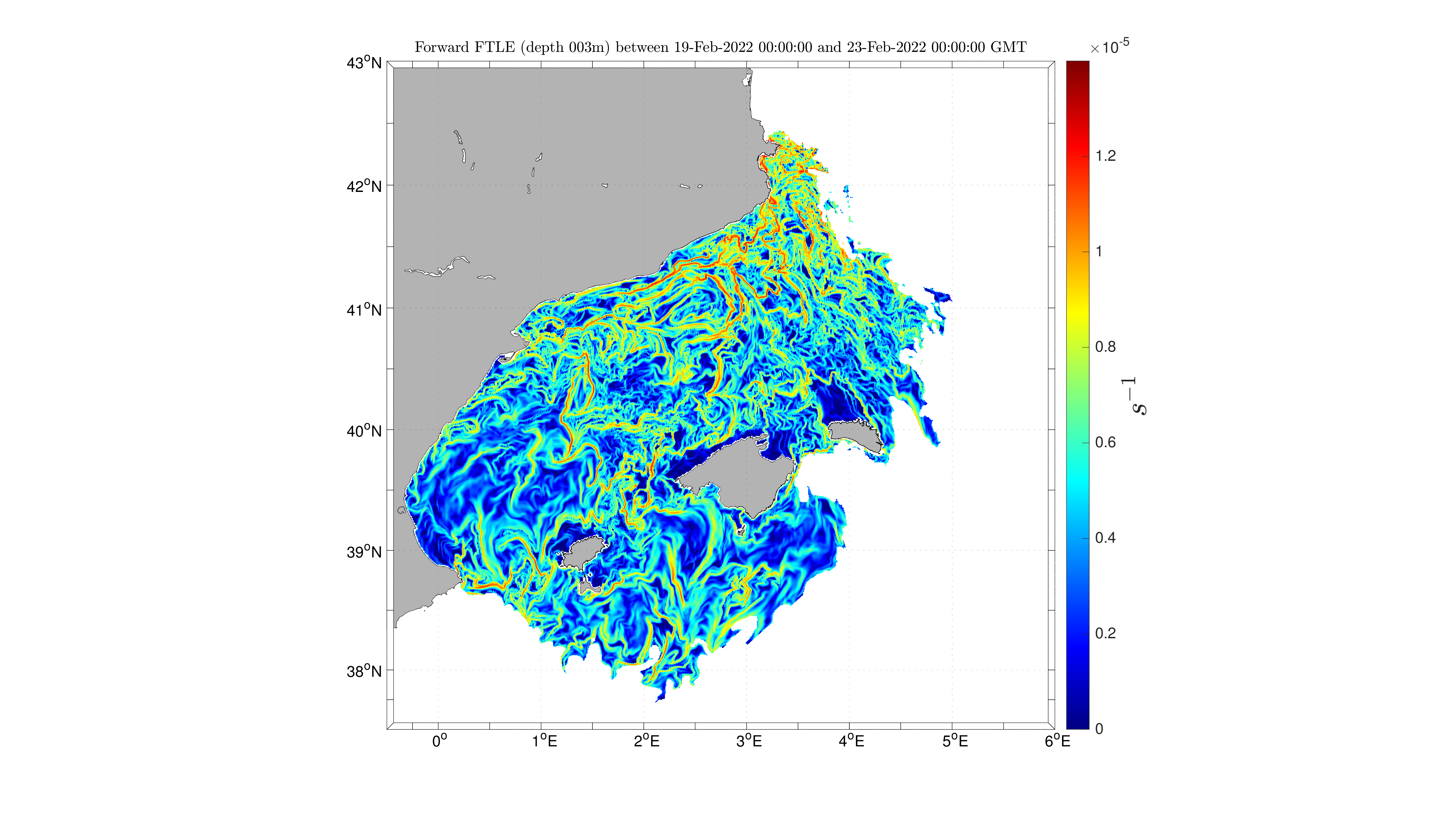

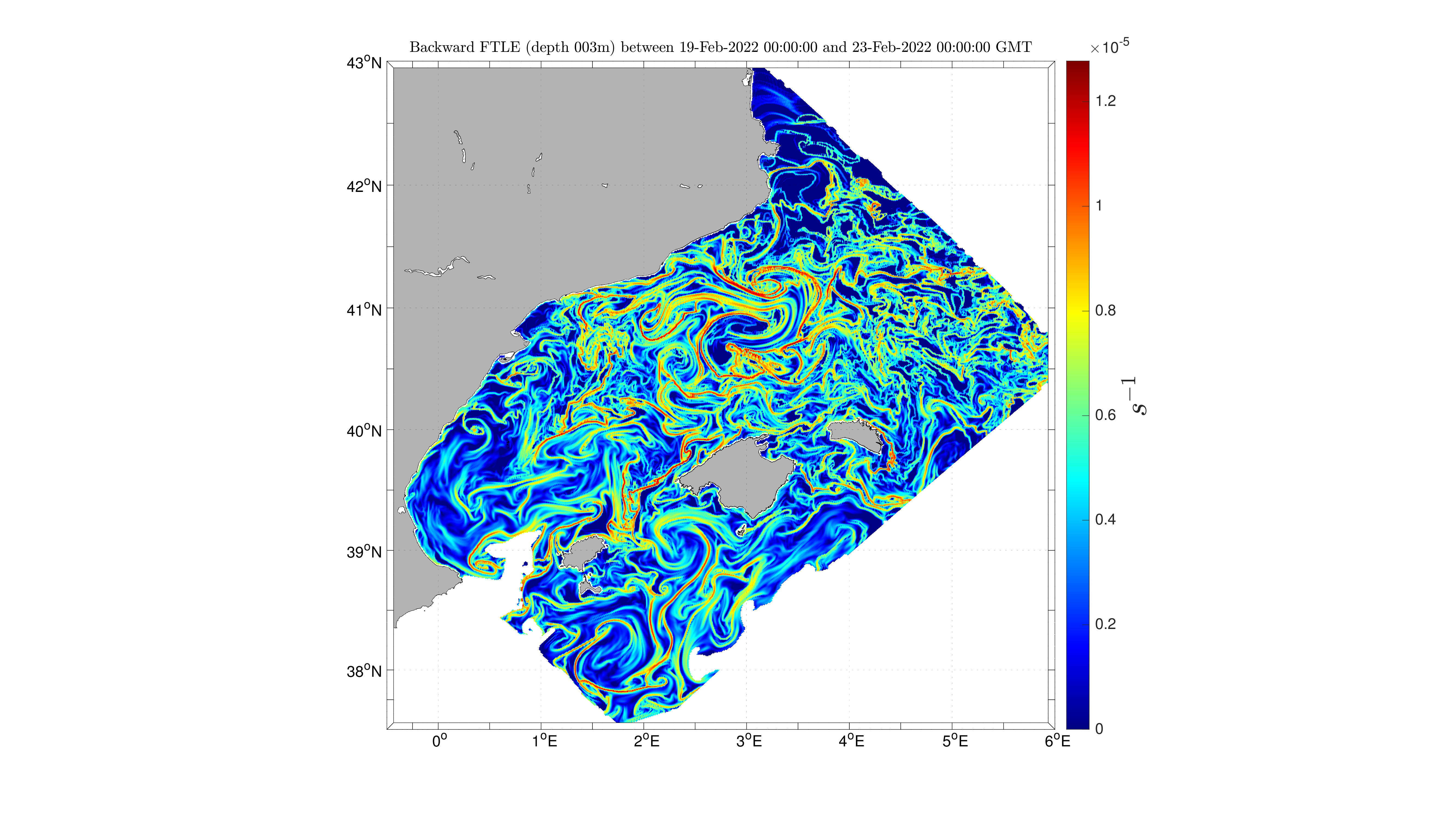

96-hr Forecast 3D FTLE at 3 meters depth on February 23 0000Z

Date	00:00Z
February 23 (Forward)
February 23 (Backward)

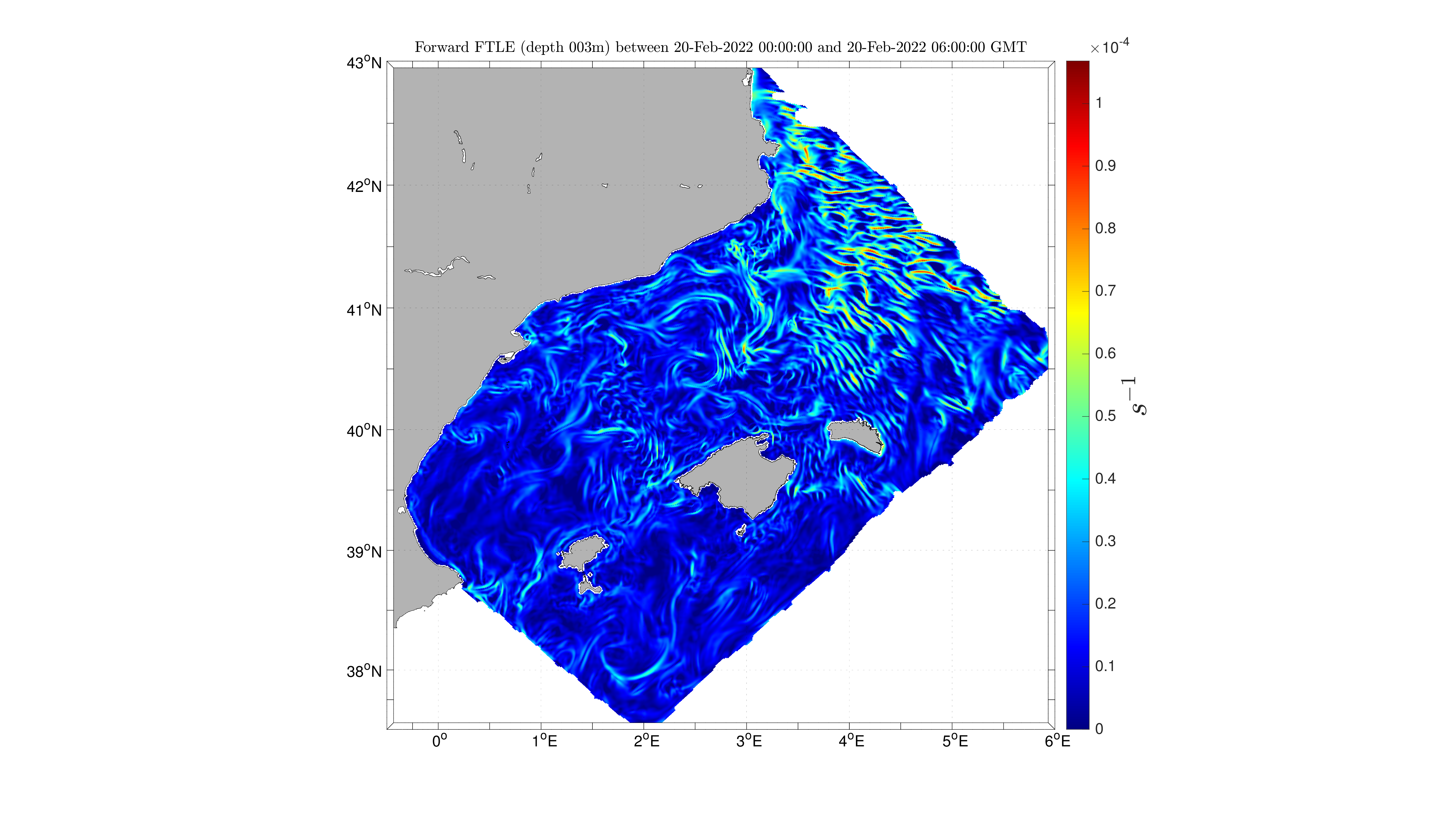

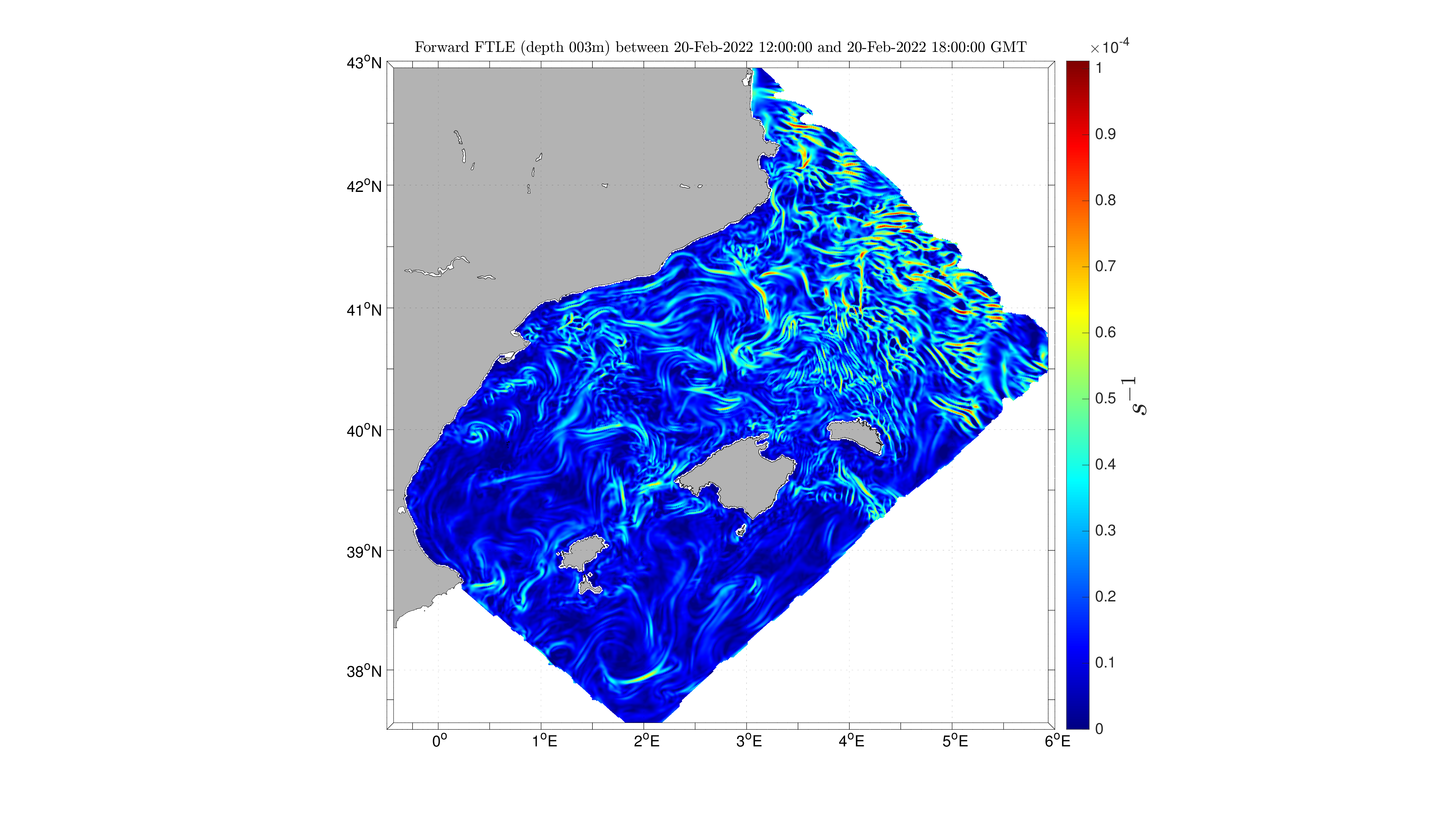

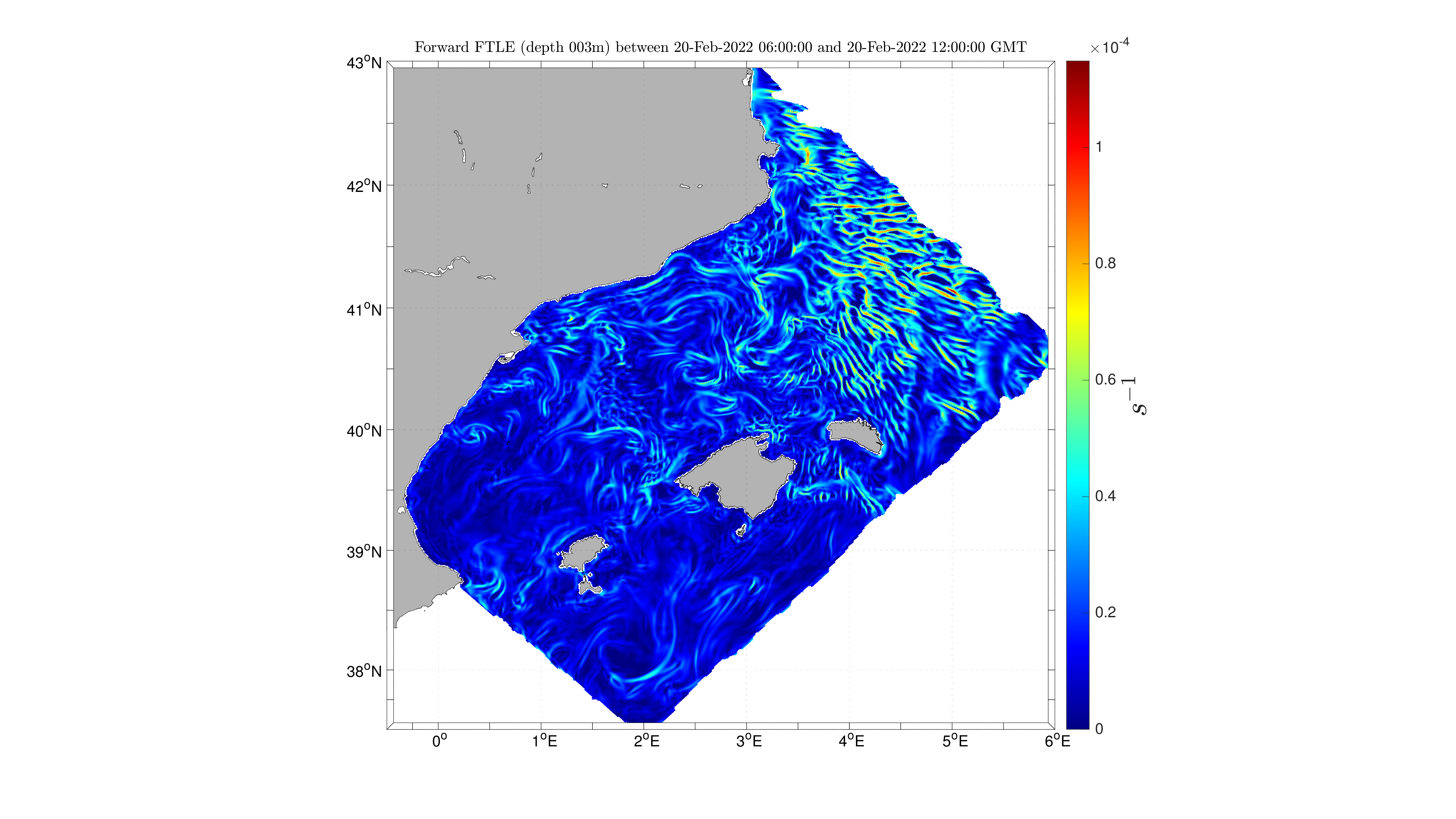

6-hr Forecast Forward 3D FTLE at 3 meters depth on four time instances for February 19 0000Z - February 23 0000Z

Start Date	00:00Z	06:00Z	12:00Z	18:00Z
February 19
February 20
